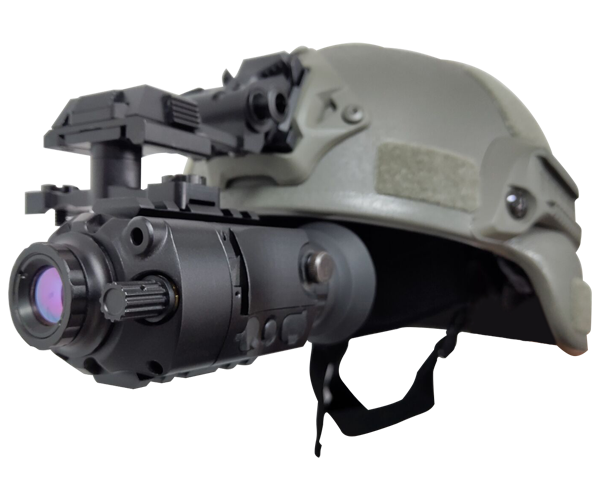

iTherml Thermal Monocular Owlook-H3 is for helmet mounted or Monocular. Featuring a 17um pixel pitch sensor core, Owlook delivers brilliant thermal image quality with advanced image processing. Lightweight and compact design, the Owlook-H3 can be concealed in a pocket. With powerful features and easy operation, they seek the heat of objects in total darkness and harsh environment which are suitable for forward observation, search & secure, law enforcement, and more.
Technical Features
■ Monoculare multifunctions 2-in-1: Monocular, helmet
■ Pocket sized: convenient to carry
■ Hot-spot: easy to track targets
■ P-I-P: display second small image w/magnification at the screen
■ Built-in 32G: 400,000 pcs snapshots or 40 hours video stored
■ Built-in WIFI
■ Rotary knob: Easy to operate
■ Aluminum alloy bodyshell: rugged ergonomic design
■ Interface: USB port for Data transferred & external power charger Headphone Jack for CVBS & RS232 output
■ High resolution display: 1024 x 768 pixels full-color OLED
384 x 288 pixels, Pico384
17μm
8~14μm
Shutterless
<40mK @ f/1.0
<3s
Continuous digital zoom (2x, 4x, optional)
Image mode(AGC), digital zoom, false color or monochrome thermal video
contrast, brightness, sharpness, denoise, zero cross, system settings
Auto FG, Auto BG, Manual
Yes, monochrome & false color video
Yes
Yes
Yes
600m (standard), 1000m & 1500m (optional)
5mW, 800nm
0.5" 1024 x 768 colorful OLED
15mm
-5°~+5°
Built-in 32G, 400,000pcs Photo capture or 40 hours Video recording
Optional
Yes
＞7hrs
2pcs 18350
Yes
FOV Human Vehicle
D R I D R I
40° x 30° 365m 66m 33m 810m 203m 101m
-40℃~+60℃
-40℃~+60℃
IP67
420g (including 9mm lens, 18350 battery)
57mm x 54mm x 133mm
Thermal Monocular, User Manual, 3.5″ Headphone Jack cable for Video & RS232 output, Warranty card
Type-C USB cable, Video cable, USB-RS232 cable
