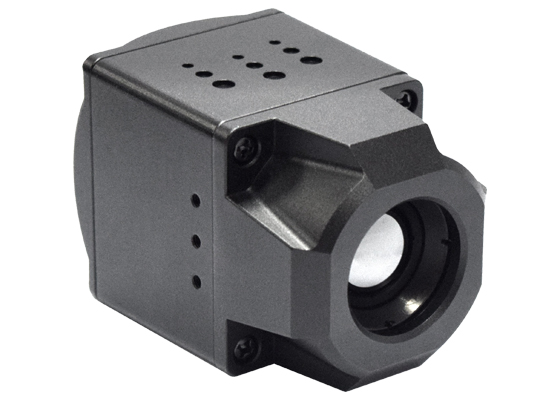

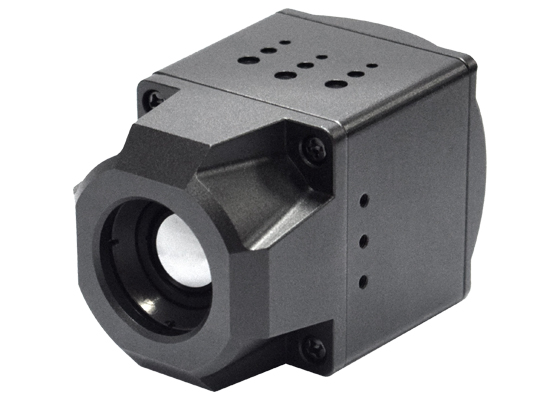

iTherml driver vision DriCam series are powerful thermal night vision system that is with shutterless thermal technology, offers you silence & continuous thermal video, lets users see clearly road hazards in total darkness. With IP67 sealed, automatic window heater, PAL video output they are compatible for monitors or displays.
Technical Features
■ Shutterless thermal technology
■ 384x288 |640 x 480 pixels17μm
■ IP67 encapsulation
■ Simple installation
■ Rugged design for vehicle application
■ offers silence & continuous thermal video
■ Multiple lens options available
■ IP network optional
| Detector Data |
|
| Detector type | 640 x 480 pixels, uncooled microbolometer |
| Pixel pitch | 17μm |
| Spectral range | 8～14um |
| Frequency | 50Hz |
| Image Performance |
|
| Non uniformity calibration | Shutterless technology |
| Thermal sensitivity(NETD) | <40mk@30℃,f/1.0 |
| Lens data (FOV) |
69.2° x 41.6°|9mm 45.4° x 35.8°|13mm 31° x 24°|19mm |
| Time to image | <5s |
| Video mode | PAL( standard), NTSC(Optional) |
| Camera control | Image mode(AGC), digital zoom, false color or monochrome thermal video, contrast, brightness, sharpness, Denoise, system settings |
| Digital zoom | x2，x4（optional: Continuous zoom 80~400） |
| Image mode | Auto FG, Auto BG, Manual |
| Power&Control |
|
| Working Voltage Range | 6V ~ 36V DC |
| Power dissipation | <1.2w@12v |
| Control port | RS485/RS422 |
| Analog video output | CVBS |
| Environment Data |
|
| Operating temperature | -40℃ ~ +60℃ |
| Storage temperature | -45℃ ~ +65℃ |
| Physical Data |
|
| Weight | <260g |
| Size(L*W*H) | 85 x 48 x 45 mm |
| Humidity | 5% ~ 95% Non-condensing |
| Encapsulation | IP67 |
| Mounting | 6 M3 X 4, UNC ¼”-20 |
| Standard Package |
|
| Standard | Thermal night vision, Video & Power cable, Operator manual, warranty ward |
