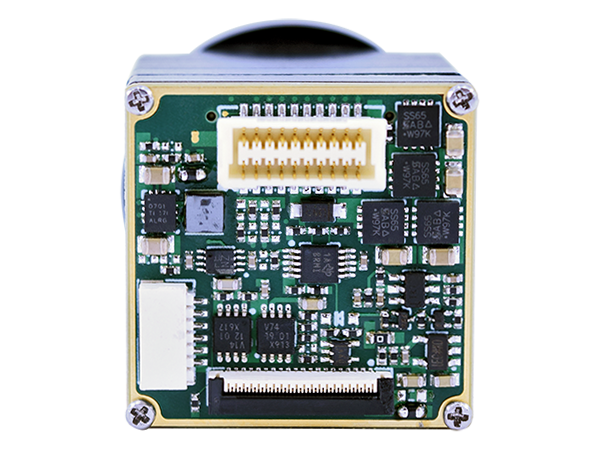

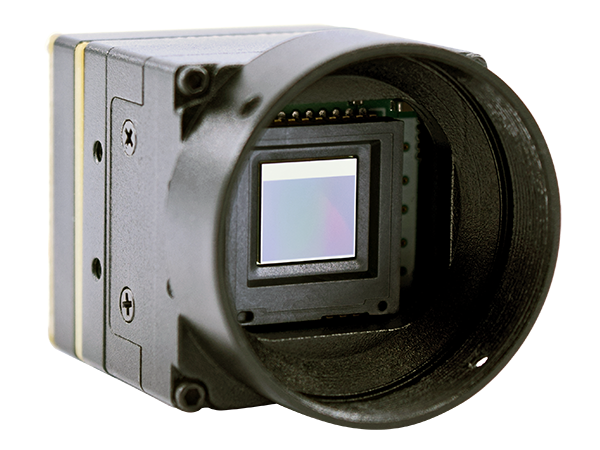

Thermal Camera Core

TNV-50 | 70

iTherml Thermal Camera Cores TNV-50 & TNV-70 are embedded with high sensitivity of Vox sensors, provide good performance of thermal imaging video, to assist user to see more subject details at harsh environment.

Also, TNV Series are versatile Thermal Imaging Cores with common mechanical constructure and electrical interface for different level sensors, offer thermal integrators for easy & convenient thermal device integrations.

Technical Features

■  IR resolution: 320 x 240 | 640 x 480 pixels, 12μm
■  Four zeroing profiles
■  High shock resistance
■  Continuous digital zoom
■  Scaleable crosshair
■  Menu keypad supported
■  UART communication
■  Built-in 32G storage
■  Pseudo analog video output
■  BT.656 digital video supported OLED display
■  Small size, Low power comsuption
■  Customized features optional
■  Customized language optional

Technical Parameters

Detector Data

Detector Type

Uncooled LWIR detector

Resolution

TNV-50: 320 x 240 pixels | TNV-70: 640 x 480 pixels, 12μm

Spectral range

8~14μm

NETD

<50mK (@25℃,F#=1.0 )

Frequency

50Hz

Image Presentation

Non uniformity calibration

Shutterless technology

Time to image

TNV-50 <3s | TNV-70 <5s

Digital zoom

Continuous zoom(80~400) via menu, 1x, 2x, 4x via hotkey

Video polarity

Whitehot, Blackhot, Speia, Iron, Rainbow, Fire

AGC mode

Auto FG | Auto BG | Manual

Bright | Contrast | Sharp | Cross postion

Adjustable

Analog video

2 channels of analog video output

Digital video

8-bit BT.656 output

Image control

Image mode(AGC), digital zoom, false color or monochrome thermal video,
contrast, brightness, sharpness, cross, postion, bad pixels, system settings

Interface

Communication

UART/RS232, LVCMOS 2.5V~3.3V compatible

Storage

Built-in 32G (optional)

Analog video

2 channels of analog video output

Digital video

Standard BT.656 output for OLED driver

Keypad

Supported

USB

Data transfer & 5V external power supply

Power switch

Soft switch or Hard switch

Battery

DC 2.5V - 6.0V, only supported rechargeable Li-ion battery;
Protection: overvoltage, undervoltage, and reverse connection.

Wifi

Optional

Auto-focus

Optional

General

Voltage

DC 2.5V - DC 6.0V

Power dissipation

TNV-50: <0.8W(media off), 1.4w(media on)
TNV-70: <1.1W (media off), 1.7w (media on)

Size (w/o lens connector)

28 x 28 x 26 mm

Weight (w/o lens connector)

40 g

Lens connector

M29 x 0.5 mm (standard, optional to be customized)

Working temperature range

-40℃ ~ + 60℃

Storage temperature range

-45℃ ~ + 70℃

Shock

750g/1 ms

Humidity

<90% RH

Mounting

4 M2 x 4mm

Lens data

Infrared lens

15mm, 19mm, 25mm, 35mm, 50mm, 75mm 100mm
(Manual focus, Fix focus, and Moto focus)

Packing Includes

Standard

Thermal imaging core, serial interface cable

Optional

Infrared lens | Variety of models of OLED display | Eye-piece
