iTherml Technology

Thermal Camera Module

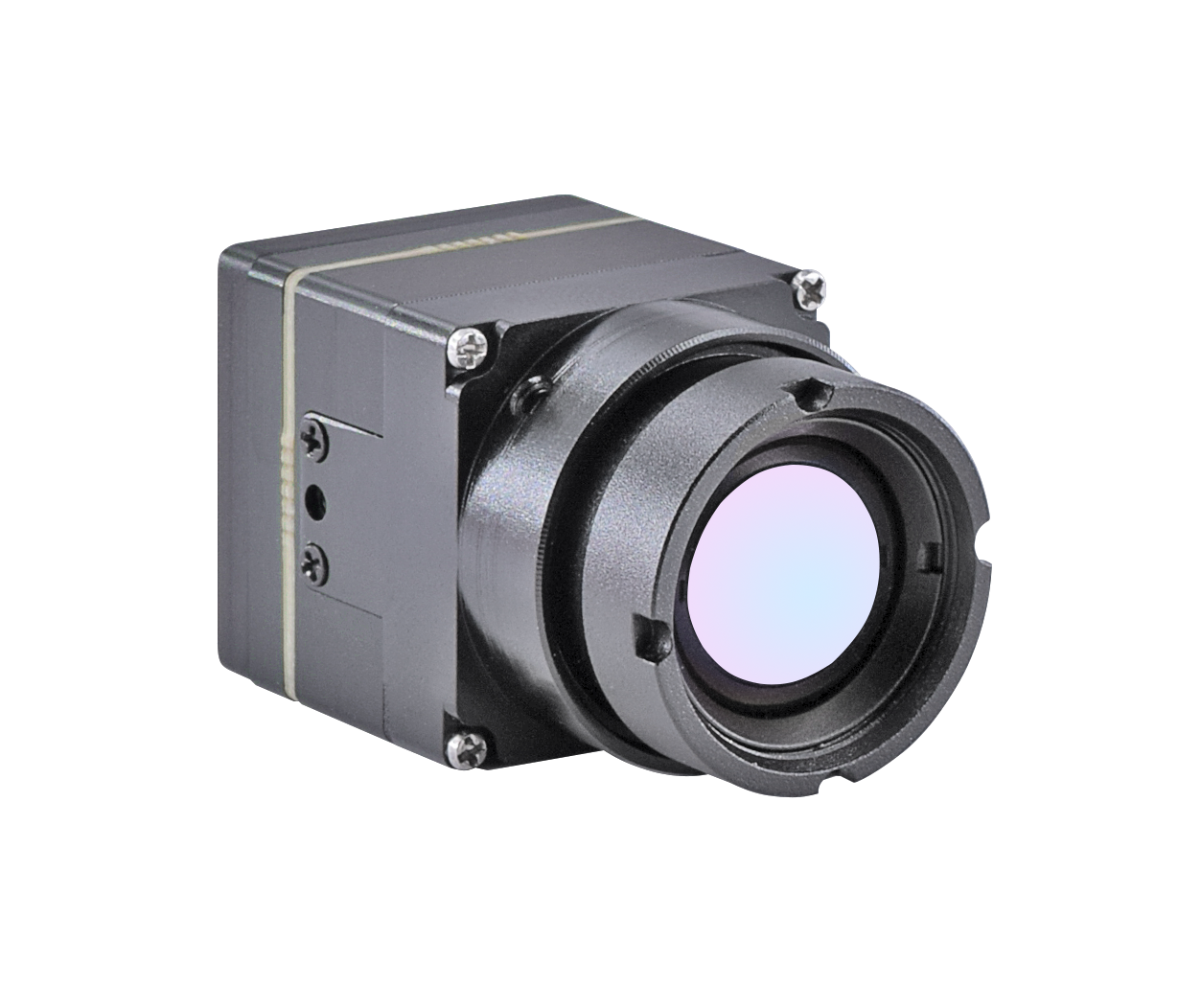

TypCor-SC640

iTherml thermal camera module TypCor-SC640 is embedded with advanced 12μm VOx detector. With the strong compatibility of lenses of various focal lengths, it excels at detecting and distinguishing objects with subtle temperature differences over long distances, delivering high-definition, consistent thermal imaging throughout varying temperature conditions.

TypCor-SC640 offers exceptional cost-effectiveness. Featuring a super-lightweight, compact and easy-to-operate design, the module is ideal for seamless integration into a wide range of thermal imaging systems, including security surveillance, unmanned aerial vehicles (UAVs), automotive night vision, handheld thermal imagers, and industrial inspection equipment, helping to minimize costs and reduce overall system complexity.

Technical Features

■  640 x 512 pixels, 12μm
■  NETD < 40mK
■  Adjustable brightness & contrast
■  Continuous digital zoom
■  CVBS analog video output
■  BT.656/MIPI Digital video output
■  Compact size & Super-light weight
■  Variety of infrared lens optional

Technical Parameters

Detector Data

Detector Type

Uncooled LWIR VOx Microbolometer

IR Resolution

640 x 512 pixels

Pixel Pitch

12μm

Spectral Range

8~14μm

Frequency

50Hz

Image Presentation

Non-uniformity Calibration

Shutter

Thermal Sensitivity (NETD)

<40mK @ 300K, f1.0

Time to Image

<5s

Digital Zoom

x2, x4
(x0.5~x4 continuous zoom optional)

Image Polarity

White hot/Black hot/Sepia/Fire/Iron

Brightness

Adjustable

Contrast

Adjustable

Interface

Communication

UART | RS232 LVCMOS 2.5V~3.3V compatible

Analog Video Output

CVBS: CCIR/PAL composite video (50Hz)

Digital Video Output (Optional)

BT.656/MIPI

Power

Working Voltage Range

2.7V~6.3 V

Power Dissipation

0.8W@3.7V

Physical Data

Weight (w/o lens mount)

<13 g

Size

21 x 21 x 15 mm

Environment Data

Operating Temperature Range

-40℃ ~ +60℃

Storage Temperature Range

-45℃ ~ +65℃
