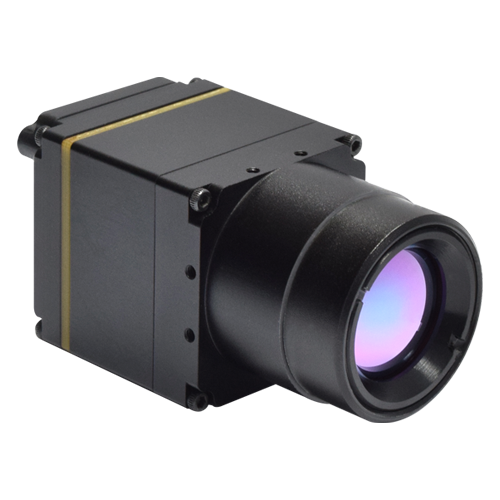

iTherml Thermal Imaging Cores MicroCor sereies are new generation thermal imaging systems, integrated with high sensitivity 12μm detector, cutting-edge thermal technology, and advanced image processing to provide high quality and stable thermal imaging video, which make them detect objects even with small difference at great distances.
MicroCor series have been redesigned electronics to offer lower power dissipation, and common mechanical & electrical compatibility between different thermal cores formats, also multiple expansion boards available to be embedded, which offer good combination of features and reliability to make them the ideal thermal camera module for variety thermal system integrations, such as unmanned aerial vehicles, thermal night vision systems, driving vision enhancement, handheld thermal imaging cameras, security and surveillance, and more.
Technical Features
■ 640 x 480 pixels, 12μm
■ NETD < 50mK
■ Advanced WDR image processing
■ Continuous digital zoom
■ Adjustable crosshair
■ Pseudocolor analog video output
■ BT.656 Digital video output
■ Compact size, low power consumption
■ Common mechanical & electrical
■ User-defined symbology supported
■ TNV & SW-TNV expansion boards
supported
■ Built-in 32G, snapshot & record video &
onboard replay
■ Multiple lens configurations
■ Athermal lens and Manual lens available
Uncooled LWIR a-Si Microbolometer
640 x 480 pixels
12μm
8~14μm
50Hz | 60Hz
Shutterless
<50mK @ f/1.0 lens
<5s
Continuous zoom (80~400); 2x, 4x (via RS232 controlled)
Automatic Gain Control (AGC), Continuous digital zoom, False color or Monochrome thermal video,
Contrast, Brightness, Sharpness, Denoise, Cross, Cross color, System settings
AutoFG, AutoBG, Manual, eAutoFG, eAutoBG
Supported
Two or more, adjustable and colorful (optional supported uploaded by user)
False color Analog video & digital video (BT.656)
＜30g
28 x 28 x 21.5 mm
8 M2 X 4 on rear of core frame UNC ¼”-20 (optional accessory)
-40℃～+60℃
-50℃～+70℃
500g; 11msec shock pulse(all axes)
4.3g, 3axes, 8hours each
5% ~ 95% Non-condensing
Thermal imaging core, serial Interface cable
Infrared lens
50-pin Standard board | 20-pin Expansion board
50-pin output | 20-pin output
28 x 28 mm
Combined with the core
UART | RS232 LVCMOS +2.5V~3.3V
+2.5V ~ 6.0 VDC
< 0.6W
2 analog video, PAL (standard)
BT.656(standard), (optional for LVDS or CMOS)
Specificed at the purchase of the time
TNV Expansion board | SW-TNV Expansion board
20-pin output | sockets
28 x 38 mm
TNV expansion board combined with the core | SW-TNV expansion board separated with the core
UART | RS232 LVCMOS +2.5V~3.3V
+3V ~ 6.0 VDC
< 0.9W
2 analog video, PAL (standard)
BT.656
Built-in 32GB (up to 128G, customized) (Picture captured, Video recorded, and On-board Playback)
Yes, (Optional)
Yes (data transferred to PC & power supply)
Supported (optional)
Supported (Optional)
Specificed at the purchase of the time
