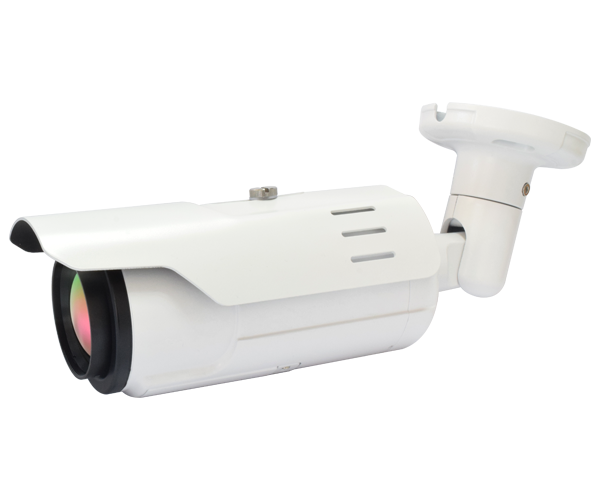

iTherml Thermal Network Camera Reach-series produce high-quality video without any light conditions and are able to detect activity in total darkness, through smoke, fog, rain and haze, providing situation awareness in perimeter, port and airport applications or where artificial light is either unavailable or restricted.
Reach series IP Thermal Network Camera is also capable of providing an analog video output with 720 x 576 thermal video resolution, provide outstanding sensitivity below 40mk at f/1.0, It is capable of multiple display formats, including white hot, black hot, and various color signatures.
Technical Features
■ Advanced WDR image processing
■ 640 x 480 pixels
■ Thermal sensitivity (NETD) <50mK @ f1.0
■ Onvif for interoperability
■ Multiple lens available
■ IP67 encapsulation
■ Temperature detection (Optional)
Uncooled Microbolometer, Vox detector
640 x 480 pixels
17μm
8~14μm
50Hz
9mm, 13mm, 19mm, 25mm, 35mm, 50mm
<0.5s, (Shutterless version optional)
<50mk @ f/1.0
IP & Analog, PAL
H.264
Image mode(AGC), digital zoom, false color or monochrome thermal video
contrast, brightness, sharpness, system settings
HTTP, RTSP, RTP, Onvif
Supported
1.5kg (≥50mm lens)
0.6kg (≤25mm lens)
∅91mm x 314mm (≤50mm lens)
∅66mm x 242mm (≥25mm lens)
VDC 12V, PoE/802.3af (optional)
-20℃~+60℃, -40℃~+60℃(optional)
Supported (optional)
IP66
Thermal network cameras, user manual, warranty card, sunshade, screw
Video cable, Ethernet cable, fixed base
-20℃~+150℃, (-20℃~+500℃ optional)
±2℃ & ±2%
Spots, Areas, Isotherm temperature measurement, Temperature alarm
